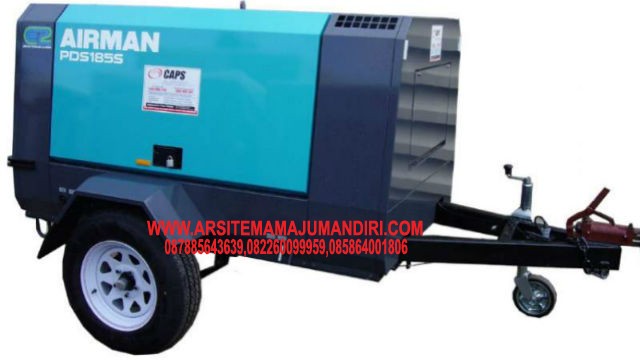

AIR COMPRESSOR AIRMAN PDS185S
Portable Diesel Compreeor
Trailer mounted portable compressors to supply air energy at various construction sites
- The wide range of models complies with different customer’s requirements.
- The main features are compact structure, low noise, excellent performance and easy maintenance.
- AIRMAN compressors are made with the highest standards to deliver reliable air power where ever it is required.
Technical Data COMPRESSOR AIRMAN PDS185S
- Model PDS185S
- Type Trailer
- Free Air Delivery [m³/min] 5.2
- Rated Operating Pressure [kgf/cm²/mpa/PSIG] 7.0/0.69/100
- Dimensions L×W×H [mm] 2,960 x 1,650 x 1,510
- Operating Weight [kg] 960
Benefits used COMPRESSOR AIRMAN PDS185S
- Profitable
- Fuel economy & component wear reduced via low engine idle at 1,300RPM. (This is less than half the speed of some other makes).
- Convenient Access & Storage.
- Gull-wing style doors mounted with gas struts on side of compressor which allows for easy access for storage and maintenance.
- Exceptional Productivity
- Unique selectable AutoPurge mode saves up to 30 of idling fuel consumption. Massive 95 litre fuel tank offers an extended length of operation between refills.
- Maintenance made Easier & Faster.
- Side by side radiator and oil cooler. - More efficient and easy to clean.
- Accessible oil/air filters together with cartridge type fuel filter enables service time and costs to be kept to a minimum.
- Hand operated compressor oil and fuel drains.
- External water and oil drains.
