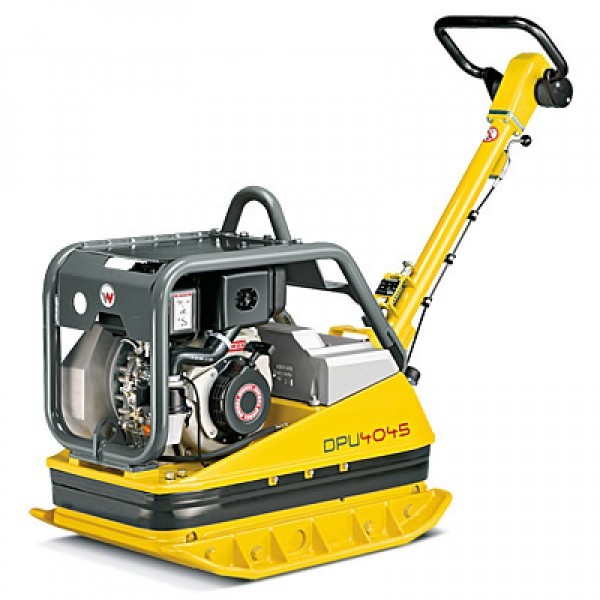

Plate Compactor Wacker Neuson DPU 4045 YE
Harga :
Rp. 240.000.000 / Unit
Pembelian Minimal :
1 Unit
Pengiriman :
2 hari sejak pembayaran
Lokasi :
Banten - Tangerang
Update Terakhir :
01-01-2018 13:03
Dapatkan Spesifikasi Harga
Plate Compactor Wacker Neuson DPU 4045 YE Produk Terbaik dari
ARSITEMA MAJU MANDIRI UNTUK KEBUTUHAN KONSTRUKSI RUMAH, GEDUNG, DLL
Detail Produk
Spesifikasi Plate Compactor Wacker Neuson DPU 4045 YE
| Description |
Data |
| Operating weight |
376 kg |
| Baseplate W x L |
440 x 900 mm |
| Operating height (without guide handle) |
764 mm |
| Working width (with extension plates) |
600 mm |
| Baseplate thickness |
12 mm |
| Max. Centrifugal force |
40 kN |
| Vibration Frequency |
69 Hz |
| Max. advance travel (depending on soil and environmental factors) |
24 m/min |
| Max. surface capacity (depending on soil and environmental factors) |
681 m2/h |
| Engine Manufacturer & Type |
Yanmar L70N air-cooled single cylinder 4-cycle diesel engine |
| Displacement |
320 cm3 |
| Max. Engine Performance (DIN ISO 3046) |
4.5 kW @ 3000 rpm |
| Max. Operating Performance (DIN ISO 3046) |
4.3 kW @ 3000 rpm |
| Fuel consumption |
1.4 litres/h |
| Tank capacity |
3.3 litres |
| Power Train |
From drive engine via centrifugal clutch and V-belt directly to the exciter |
| Fuel Type |
Diesel |
