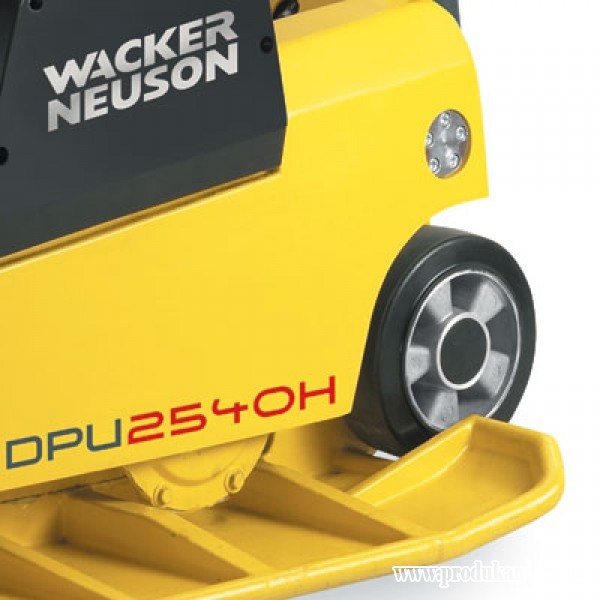

Plate Compactor Wacker Neuson DPU2540H
Pembelian Minimal :
164000000 Unit
Pengiriman :
2 hari sejak pembayaran
Lokasi :
Banten - Tangerang
Update Terakhir :
01-01-2018 13:03
Dapatkan Spesifikasi Harga
Plate Compactor Wacker Neuson DPU2540H Produk Terbaik dari
ARSITEMA MAJU MANDIRI UNTUK KEBUTUHAN KONSTRUKSI RUMAH, GEDUNG, DLL
Detail Produk
Spesifikasi Plate Compactor Wacker Neuson DPU2540H
| Description |
Data |
| Operating Weight |
160 kg |
| Shipping Weight Incl. Packaging |
172 kg |
| Shipping Size L x W x H |
760 x 470 x 1290 mm |
| Baseplate (W x L) |
400 x 703 mm |
| Working Width |
400 mm |
| Machine Height (without guide handle) |
736 mm |
| Working Height of Handle |
800 - 1143 mm |
| Baseplate Thickness |
10 mm |
| Max. Centrifugal Force |
25 kN / 5625 lbf |
| Vibration Frequency |
90 Hz / 90 vpm |
| Max. Forward / Reverse Travel |
21 m/min |
| Max. Gradeability (depending on soil) |
30% |
| Compacted Area (depending on soil) |
504 m2/h |
| Engine |
Hatz 1B20 Air-Cooled Single Cylinder 4-Stroke Diesel Engine |
| Max. Rated Power @ Rated Speed* |
3.5 kW / 4.6 hp @ 3600 rpm |
| Power Rating Specification |
DIN ISO3046 |
| Rated Power Output |
1.5 kW / 2.01 hp @ 2800 rpm |
| Displacement |
243 cm3 |
| Fuel Consumption |
0.4 litres/h |
| Tank Capacity |
3 litres |
| Max. allowable tilt of engine in continuous operation |
25° |
| Power Train |
from drive engine via centrifugal clutch and V-belt directly to the exciter |
