Spesifikasi Tamping Rammer Wacker Neuson BS50-2 10inch
Alat Alat Mesin

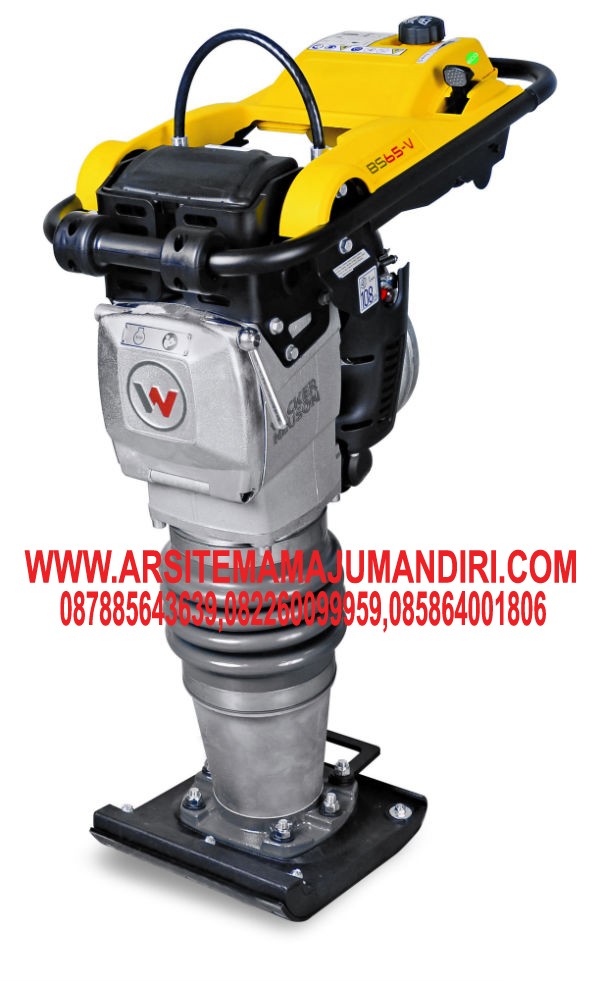

Wacker Neuson BS series adalah Vibratory rammer, yang digunakan untuk meratakan permukaan tanah dan lain-lain dengan getaran
Technical Data BS 50-2
| Description | Metric | Inch | ||
| Length x width x height | 675 x 345 x 940 | mm | 26.5 x 13.5 x 37 | in |
| Shoe size (w x l) | 250 x 330 | mm | 10 x 13 | in |
| Operating weight | 59 | kg | 129 | lb |
| Stroke | 72 | mm | 2.8 | in |
| Percussion rate | up to 715 | 1/min | up to 715 | blows/min |
| Travel speed | up to 18 | m/min | up to 46 | ft/min |
| Compacted area | 301 | m2/h | 2,300 | ft2/h |
| Engine Type | air-cooled, 2-cycle, single cylinder WACKER WM 80, gasoline engine | |||
| Displacement | 80 | cm3 | 4.9 | in3 |
| Max. power output | 2,3 | kW | 3.1 | hp |
| at | 4.400 | 1/min | 4,400 | rpm |
| Operating power | 1,8 | kW | 2.4 | hp |
| at | 4.400 | 1/min | 4,400 | rpm |
| Horsepower | 3 | kW | 4 | hp |
| Fuel to oil ratio | 50-100:1 | 50-100:1 | ||
| Fuel consumption | 1 | l/h | 1.1 | US qt/h |
| Fuel tank capacity | 3.0 | l | 3.2 | US qt |
